Type Non Inverter Cooling Only
Untuk category produk Daikin ini, ada 5 type antara lain :
- Ceiling Mounted Cassette (Round Flow) Type – R-410A
- Ceiling Suspended Type
- Duct Connection Low Static Pressure Type
- Ceiling Mounted Cassette 4-WAY FLOW
- Floor Standing Type
-

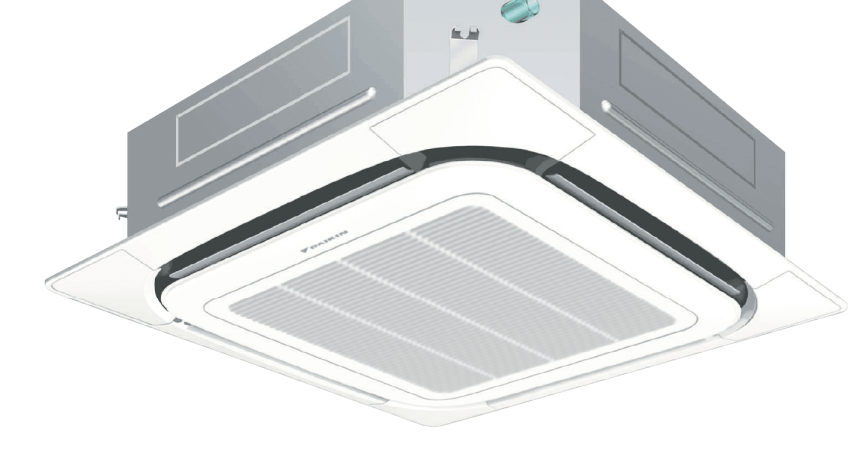

Ceiling Mounted Cassette (Round Flow) Type – R-410A
Spesifikasi Ceiling Mounted Cassette
| 1.5 PK | 2 PK | 2.5 PK | 3 PK | 3 PK | 3.5 PK | ||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Indoor | FCNQ13MV14 | FCNQ18MV14 | FCNQ21MV14 | FCNQ26MV14 | FCNQ26MV14 | FCNQ30MV14 | ||
| Outdoor | RNQ13MV14 | RNQ18MV14 | RNQ21MV14 | RNQ26MV14 | RNQ26MY14 | RNQ30MY14 | |||
| Catu daya | V: 220-240V, 1Ø, 50Hz / 220-230V, 1Ø, 60Hz | Y: 380-415V, 3Ø, 50Hz | |||||||
| Kapasitas | Btu/h | 13.000 | 18.000 | 21.000 | 26,000 | 26,000 | 30,000 | ||
| kW | 3.8 | 5.3 | 6.2 | 7.6 | 7.6 | 8.8 | |||
| Daya Listrik | kW | 1.24 | 1.89 | 2.21 | 2.53 | 2.53 | 2.73 | ||
| COP | W/W | 3.07 | 2.80 | 2.80 | 3.00 | 3.00 | 3.22 | ||
| Indoor | Dimensi (HxWxD) | mm | 256x840x840 | 256x840x840 | 298x840x840 | ||||
| Berat Mesin | kg | 19.5 | 21 | 21 | 24 | ||||
| Outdoor | Dimensi (HxWxD) | mm | 550×765×285 | 595×845×300 | 735x825x300 | 990x940x320 | |||
| Berat Mesin | kg | 36 | 40 | 49 | 56 | 74 | |||
| Ukuran Pipa | Cair | inch | 1/4 | 3/8 | |||||
| Gas | inch | 1/2 | 5/8 | 5/8 | |||||
| Maksimal Pipa | Panjang | m | 30 | 30 | 50 | ||||
| Tinggi | m | 10 | 15 | 20 | 30 | ||||
| 4 PK | 5 PK | 6 PK | ||||
|---|---|---|---|---|---|---|
| Model | Indoor | FCNQ36MV14 | FCNQ42MV14 | FCNQ48MV14 | ||
| Outdoor | RNQ36MY14 | RNQ42MY14 | RNQ48MY14 | |||
| Catu daya | Y: 380-415V, 3Ø, 50Hz | |||||
| Kapasitas | Btu/h | 36,000 | 42,600 | 48,000 | ||
| kW | 10.6 | 12.5 | 14.1 | |||
| Daya Listrik | kW | 3.31 | 4.15 | 5.04 | ||
| COP | W/W | 3.20 | 3.01 | 2.80 | ||
| Indoor | Dimensi (HxWxD) | mm | 298x840x840 | |||
| Berat Mesin | kg | 24 | ||||
| Outdoor | Dimensi (HxWxD) | mm | 1,345x900x320 | |||
| Berat Mesin | kg | 103 | 107 | 111 | ||
| Ukuran Pipa | Cair | inch | 3/8 | |||
| Gas | inch | 5/8 | ||||
| Maksimal Pipa | Panjang | m | 50 | |||
| Tinggi | m | 30 | ||||
-
Ceiling Suspended Type
Spesifikasi Ceiling Suspended Type
| 1.5 PK | 2 PK | 2.5 PK | 3 PK | 3 PK | 3.5 PK | ||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Indoor | FHNQ13MV14 | FHNQ18MV14 | FHNQ21MV14 | FHNQ26MV14 | FHNQ26MV14 | FHNQ30MV14 | ||
| Outdoor | RNQ13MV14 | RNQ18MV14 | RNQ21MV14 | RNQ26MV14 | RNQ26MY14 | RNQ30MY14 | |||
| Catu daya | V: 220-240V, 1Ø, 50Hz / 220-230V, 1Ø, 60Hz | Y: 380-415V, 3Ø, 50Hz | |||||||
| Kapasitas | Btu/h | 13.000 | 18.000 | 21.000 | 26,000 | 26,000 | 30,000 | ||
| kW | 3.8 | 5.3 | 6.2 | 7.6 | 7.6 | 8.8 | |||
| Daya Listrik | kW | 1.58 | 2.04 | 2.38 | 2.65 | 2.65 | 3.07 | ||
| COP | W/W | 2.40 | 2.60 | 2.60 | 2.87 | 2.87 | 2.87 | ||
| Indoor | Dimensi (HxWxD) | mm | 195x960x680 | 195×1,160×680 | 195×1,400×680 | ||||
| Berat Mesin | kg | 24 | 26 | 32 | |||||
| Outdoor | Dimensi (HxWxD) | mm | 550×765×285 | 595×845×300 | 735x825x300 | 990x940x320 | |||
| Berat Mesin | kg | 36 | 40 | 49 | 56 | 74 | |||
| Ukuran Pipa | Cair | inch | 1/4 | 3/8 | |||||
| Gas | inch | 1/2 | 5/8 | 5/8 | |||||
| Maksimal Pipa | Panjang | m | 30 | 30 | 50 | ||||
| Tinggi | m | 10 | 15 | 20 | 30 | ||||
| 4 PK | 5 PK | 6 PK | ||||
|---|---|---|---|---|---|---|
| Model | Indoor | FHNQ36MV14 | FHNQ42MV14 | FHNQ48MV14 | ||
| Outdoor | RNQ36MY14 | RNQ42MY14 | RNQ48MY14 | |||
| Catu daya | Y: 380-415V, 3Ø, 50Hz | |||||
| Kapasitas | Btu/h | 36.000 | 42.000 | 48.000 | ||
| kW | 10,46 | 12,30 | 14.1 | |||
| Daya Listrik | kW | 3.64 | 4,49 | 5.51 | ||
| COP | W/W | 2.86 | 2.73 | 2.56 | ||
| Indoor | Dimensi (HxWxD) | mm | 195×1,590×680 | |||
| Berat Mesin | kg | 35 | ||||
| Outdoor | Dimensi (HxWxD) | mm | 1345x900x320 | |||
| Berat Mesin | kg | 103 | 107 | 111 | ||
| Ukuran Pipa | Cair | inch | 3/8 | |||
| Gas | inch | 5/8 | ||||
| Maksimal Pipa | Panjang | m | 50 | |||
| Tinggi | m | 30 | ||||
-
Duct Connection Low Static Pressure Type
Spesifikasi Duct Connection Low Static Pressure Type
| 1 PK | 1.5 PK | 2 PK | 2.5 PK | 3 PK | 3 PK | 3.5 PK | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | Indoor | FDBNQ09MV14 | FDBNQ13MV14 | FDBNQ18MV14 | FDBNQ21MV14 | FDBNQ26MV14 | FDBNQ26MV14 | FDBNQ30MV14 | ||
| Outdoor | RNQ09MV14 | RNQ13MV14 | RNQ18MV14 | RNQ21MV14 | RNQ26MV14 | RNQ26MY14 | RNQ30MY14 | |||
| Catu daya | V: 220-240V, 1Ø, 50Hz / 220-230V, 1Ø, 60Hz | Y: 380-415V, 3Ø, 50Hz | ||||||||
| Kapasitas | Btu/h | 9,200 | 13,000 | 17,700 | 21,000 | 26,000 | 26,000 | 30,000 | ||
| kW | 2.7 | 3.8 | 5.2 | 6.2 | 7.6 | 7.6 | 8.8 | |||
| Daya Listrik | kW | 0.86 | 1.28 | 2.06 | 2.38 | 2.62 | 2.62 | 3.03 | ||
| COP | W/W | 3.14 | 2.97 | 2.52 | 2.60 | 2.90 | 2.9 | 2.9 | ||
| Indoor | Dimensi (HxWxD) | mm | 260x900x580 | 260×1,300×580 | 305×1,350×680 | 305×1,550×680 | ||||
| Berat Mesin | kg | 25 | 32 | 43 | 52 | |||||
| Outdoor | Dimensi (HxWxD) | mm | 550×765×285 | 595×845×300 | 735x825x300 | 990x940x320 | ||||
| Berat Mesin | kg | 35 | 36 | 40 | 49 | 56 | 74 | |||
| Ukuran Pipa | Cair | inch | 1/4 | 3/8 | ||||||
| Gas | inch | 3/8 | 1/2 | 5/8 | 5/8 | |||||
| Maksimal Pipa | Panjang | m | 30 | 30 | 50 | |||||
| Tinggi | m | 10 | 15 | 20 | 30 | |||||
| 4 PK | 5 PK | 6 PK | ||||
|---|---|---|---|---|---|---|
| Model | Indoor | FDMNQ36MV14 | FDMNQ42MV14 | FDMNQ48MV14 | ||
| Outdoor | RNQ36MY14 | RNQ42MY14 | RNQ48MY14 | |||
| Catu daya | Y: 380-415V, 3Ø, 50Hz | |||||
| Kapasitas | Btu/h | 36,000 | 42,000 | 48,000 | ||
| kW | 10.6 | 12.3 | 14.1 | |||
| Daya Listrik | kW | 3.53 | 4.49 | 5.56 | ||
| COP | W/W | 3.00 | 2.74 | 2.54 | ||
| Indoor | Dimensi (HxWxD) | mm | 305×1,550×680 | |||
| Berat Mesin | kg | 52 | ||||
| Outdoor | Dimensi (HxWxD) | mm | 1,345x900x320 | |||
| Berat Mesin | kg | 103 | 107 | 111 | ||
| Ukuran Pipa | Cair | inch | 3/8 | |||
| Gas | inch | 5/8 | ||||
| Maksimal Pipa | Panjang | m | 50 | |||
| Tinggi | m | 30 | ||||
-
Ceiling Mounted Cassette 4-Way Flow
Spesifikasi Ceiling Mounted Cassette 4-Way Flow
| 2 PK | 2.5 PK | 3 PK | 3 PK | 4 PK | 5 PK | ||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Indoor | FCRN50FXV14 | FCRN60FXV14 | FCRN71FXV14 | FCRN71FXV14 | FCRN100FXV14 | FCRN125FXV14 | ||
| Outdoor | RN50CXV1A4 | RN60CXV1A4 | RR71CXV1A4 | RR71CXY1A4 | RR100DXY1A4 | RR125DXY1A4 | |||
| Catu daya | V: 220-240V, 1Ø, 50Hz / 220-230V, 1Ø, 60Hz | Y: 380-415V, 3Ø, 50Hz | |||||||
| Kapasitas | Btu/h | 18.500 | 23.000 | 28,000 | 28,000 | 36,000 | 42,000 | ||
| kW | 5.42 | 6.74 | 8.21 | 8.21 | 10.55 | 12.13 | |||
| Daya Listrik | kW | 1.76 | 2.05 | 2.93 | 2.90 | 3.66 | 4.11 | ||
| COP | W/W | 3.08 | 3.29 | 2.80 | 2.83 | 2.88 | 3.00 | ||
| Indoor | Dimensi (HxWxD) | mm | 246x840x840 | 246x840x840 | |||||
| Berat Mesin | kg | 22 | 22 | 25 | |||||
| Outdoor | Dimensi (HxWxD) | mm | 651x855x328 | 753x855x328 | 852×1,030×428 | ||||
| Berat Mesin | kg | 43 | 47 | 57 | 56 | 71 | 95 | ||
| Ukuran Pipa | Cair | inch | 1/4 | 3/8 | |||||
| Gas | inch | 1/2 | 5/8 | 5/8 | |||||
| Maksimal Pipa | Panjang | m | 30 | 45 | 50 | ||||
| Tinggi | m | 15 | 25 | 30 | |||||
-
Floor Standing Type
Spesifikasi Floor Standing Type
| 3 PK | 3 PK | 4 PK | 5 PK | 6 PK | ||||
|---|---|---|---|---|---|---|---|---|
| Model | Indoor | FVRN71BXV14 | FVRN71BXV14 | FVRN100BXV14 | FVRN125BXV14 | FVRN140BXV14 | ||
| Outdoor | RR71CXV1A4 | RR71CXV1A4 | RR100DXY1A4 | RR125DXY1A4 | RR140DXY1A4 | |||
| Catu daya | V: 220-240V, 1Ø, 50Hz / 220-230V, 1Ø, 60Hz | Y: 380-415V, 3Ø, 50Hz | ||||||
| Kapasitas | Btu/h | 29.000 | 28.000 | 36.000 | 42.000 | 55.000 | ||
| kW | 8,49 | 8.21 | 10,6 | 12,31 | 16.12 | |||
| Daya Listrik | kW | 2,90 | 2.84 | 4 | 4,1 | 5.49 | ||
| COP | W/W | 2,93 | 2.89 | 2,97 | 3,00 | 2.97 | ||
| Indoor | Dimensi (HxWxD) | mm | 1,850x600x270 | 1,850x600x350 | 1,850x600x350 | |||
| Berat Mesin | kg | 42 | 45 | 48 | 51 | |||
| Outdoor | Dimensi (HxWxD) | mm | 753x 855×328 | 852×1,030×400 | 852×1,030×400 | |||
| Berat Mesin | kg | 57 | 95 | 95 | 105 | |||
| Ukuran Pipa | Cair | inch | 3/8 | 3/8 | ||||
| Gas | inch | 5/8 | 5/8 | 3/4 | ||||
| Maksimal Pipa | Panjang | m | 45 | 50 | 45 | |||
| Tinggi | m | 25 | 30 | 25 | ||||
