Produk Daikin VRV

Daikin VRV – Sistem Daikin VRV adalah jenis AC komersial untuk bangunan komersial yang menggunakan kontrol aliran pendingin variabel yang dikembangkan oleh Daikin untuk menyediakan pelanggan dengan kemampuan untuk mempertahankan kontrol zona individu di setiap kamar dan lantai bangunan.

Daikin VRV ini memiliki beberapa type antara lain :

VRV X
VRV A
VRV IV-S
VRV-Q
VRV HRHW
VRV IV W
INDOOR LINEUP

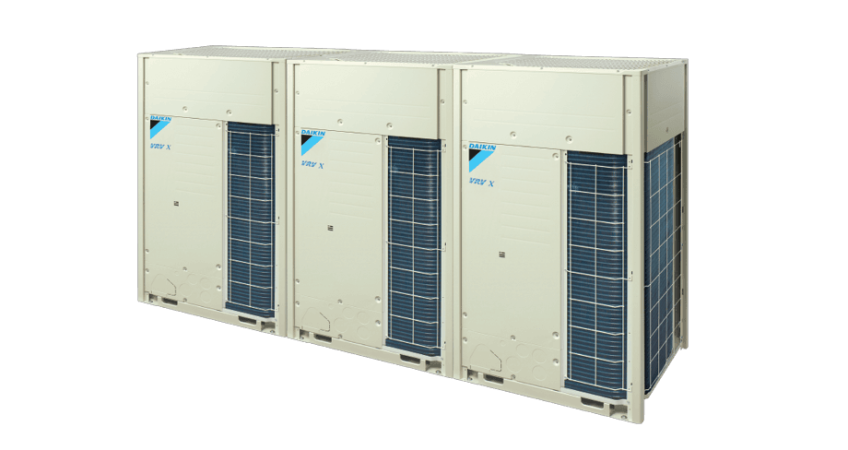

1. Spesifikasi VRV X

Model Name	Combination			Capacity (Btu/h)	Power Consumption (kW)	Capacity Control (%)	Dimention (HxWxD) (mm)	Machine Weight (kg)	Sound Level dB(A)
RXUQ 6 AY14	RXUQ 6 AY14	–	–	54.600	3,23	23-100	1,657×930×765	185	54
RXUQ 8 AY14	RXUQ 8 AY14	–	–	76.400	4,82	19-100	1,657×930×765	185	56
RXUQ 10 AY14	RXUQ 10 AY14	–	–	95.500	6,29	13-100	1,657×1,240×765	215	56
RXUQ 12 AY14	RXUQ 12 AY14	–	–	114.000	7,81	12-100		215	58
RXUQ 14 AY14	RXUQ 14 AY14	–	–	136.000	9,46	11-100		275	59
RXUQ 16 AY14	RXUQ 16 AY14	–	–	154.000	11,4	9-100		275	59
RXUQ 18 AY14	RXUQ 18 AY14	–	–	171.000	12,8	9-100		291	62
RXUQ 20 AY14	RXUQ 20 AY14	–	–	191.000	14,8	7-100		291	65
RXUQ 12 AMY14	RXUQ 6 AY14	RXUQ 6 AY14	–	109.000	6,46	11-100	“(1,657×930×765)+(1,657×930×765)”	185+185	57
RXUQ 14 AMY14	RXUQ 6 AY14	RXUQ 8 AY14	–	131.000	8,05	10-100			58
RXUQ 16 AMY14	RXUQ 8 AY14	RXUQ 8 AY14	–	153.000	9,64	9-100			59
RXUQ 18AMY14	RXUQ 8 AY14	RXUQ 10 AY14	–	172.000	11,1	8-100	“(1,657×930×765)+(1,657×1,240×765)”	185+215	59
RXUQ 20 AMY14	RXUQ 8 AY14	RXUQ 12 AY14	–	191.000	12,6	7-100	“(1,657×930×765)+(1,657×1,240×765)”	185+215	60
RXUQ 22 AMY15	RXUQ 10 AY14	RXUQ 12 AY14	–	210.000	14,1	6-100	“(1,657×1,240×765)+(1,657×1,240×765)”	215+215	60
RXUQ 24 AMY14	RXUQ 12 AY14	RXUQ 12 AY14	–	229.000	15,6			215+215	61
RXUQ 26 AMY14	RXUQ 12 AY14	RXUQ 14 AY14	–	251.000	17,3			215+275	62
RXUQ 28 AMY14	RXUQ 12 AY14	RXUQ 16 AY14	–	268.000	19,2	5-100	“(1,657×1,240×765+(1,657×1,240×765)”	215+275	62
RXUQ 30 AMY14	RXUQ 12 AY14	RXUQ 18 AY14	–	285.000	20,6			215+291	63
RXUQ 32 AMY14	RXUQ 12 AY14	RXUQ 20 AY14	–	305.000	22,6			215+291	66
RXUQ 34 AMY14	RXUQ 14 AY14	RXUQ 20 AY14	–	328.000	24,3	4-100		275+291
RXUQ 36 AMY14	RXUQ 16 AY14	RXUQ 20 AY14	–	345.000	26,2			275+291
RXUQ 38 AMY14	RXUQ 18 AY14	RXUQ 20 AY14	–	362.000	27,6			291+291	67
RXUQ 40 AMY14	RXUQ 20 AY14	RXUQ 20 AY14	–	382.000	29,6			291+291	68
RXUQ 18 AMY14	RXUQ 6 AY14	RXUQ 6 AY14	RXUQ 6 AY14	164.000	9,69	8-100	“(1,657×930×765)+(1,657×930×765+(1,657×930×765)”	185+185+185	59
RXUQ 20 AMY14	RXUQ 6 AY14	RXUQ 6 AY14	RXUQ 8 AY14	186.000	11,3	7-100	“(1,657×930×765)+(1,657×930×765+(1,657×930×765)”	185+185+185	60
RXUQ 42 AMY14	RXUQ 12 AY14	RXUQ 12 AY14	RXUQ 18 AY14	399.000	28,4	4-100	“(1,657×1,240×765)+(1,657×1,240×765)+(1,657×1,240×765)”	215+215+291	65
RXUQ 44 AMY14	RXUQ 12 AY14	RXUQ 12 AY14	RXUQ 20 AY14	420.000	30,4	3-100		215+215+291	66
RXUQ 46 AMY14	RXUQ 12 AY14	RXUQ 14 AY14	RXUQ 20 AY14	442.000	32,1			215+275+291	67
RXUQ 48 AMY14	RXUQ 12 AY14	RXUQ 16 AY14	RXUQ 20 AY14	459.000	34			215+275+291
RXUQ 50 AMY14	RXUQ 12 AY14	RXUQ 18 AY14	RXUQ 20 AY14	476.000	35,4			215+291+291
RXUQ 52 AMY14	RXUQ 12 AY14	RXUQ 20 AY14	RXUQ 20 AY14	496.000	37,4			215+291+291	68
RXUQ 54 AMY14	RXUQ 14 AY14	RXUQ 20 AY14	RXUQ 20 AY14	519.000	39,1			275+291+291	69
RXUQ 56 AMY14	RXUQ 16 AY14	RXUQ 20 AY14	RXUQ 20 AY14	536.000	41			275+291+291
RXUQ 58 AMY14	RXUQ 18 AY14	RXUQ 20 AY14	RXUQ 20 AY14	553.000	42,4			291+291+291
RXUQ 60 AMY14	RXUQ 20 AY14	RXUQ 20 AY14	RXUQ 20 AY14	573.000	44,4	2-100		291+291+291	70

2. Spesifikasi VRV A

Model Name	Combination			Capacity (Btu/h)	Power Consumption (kW)	Capacity Control (%)	Dimention (HxWxD) (mm)	Machine Weight (kg)	Sound Level dB(A)
RXQ 6 AY14	–	–	–	54,600	3.38	25-100	1,657×930×765	175	56
RXQ 8 AY14	–	–	–	76,400	5.17	20-100		175	56
RXQ 10 AY14	–	–	–	95,500	6.84	13-100		185	57
RXQ 12 AY14	–	–	–	114,000	8.7	12-100		185	59
RXQ 14 AY14	–	–	–	136,000	10.7	11-100	1,657×1,240×765	215	60
RXQ 16 AY14	–	–	–	154,000	12.9	10-100		260	60
RXQ 18 AY14	–	–	–	171,000	15.3	10-100		260	61
RXQ 20 AY14	–	–	–	191,000	17.7	7-100		285	65
RXQ 18 AMY14	RXQ 8 AY14	RXQ 10 AY14	–	172,000	12	7-100	(1,657×930×765) + (1,657×930×765)	175+185	60
RXQ 20 AMY14	RXQ 8 AY14	RXQ 12 AY14	–	191,000	13.9	7-100		175+185	61
RXQ 22 AMY14	RXQ 10 AY14	RXQ 12 AY14	–	210,000	15.5	6-100		185+185	61
RXQ 24 AMY14	RXQ 12 AY14	RXQ 12 AY14	–	229,000	17.4			185+185	62
RXQ 26 AMY14	RXQ 12 AY14	RXQ 14 AY14	–	251,000	19.4		(1,657×930×765) + (1,657×1,240×765)	185+215	63
RXQ 28 AMY14	RXQ 12 AY14	RXQ 16 AY14	–	268,000	21.6	5-100		185+260
RXQ 30 AMY14	RXQ 12 AY14	RXQ 18 AY14	–	285,000	24	5-100		185+260
RXQ 32 AMY14	RXQ 14 AY14	RXQ 18 AY14	–	307,000	26	5-100	(1,657×1,240×765) + (1,657×1,240×765)	215+260	64
RXQ 34 AMY14	RXQ 16 AY14	RXQ 18 AY14	–	324,000	28.2			260+260
RXQ 36 AMY14	RXQ 18 AY14	RXQ 18 AY14	–	341,000	30.6			260+260
RXQ 38 AMY14	RXQ 18 AY14	RXQ 20 AY14	–	362,000	33	4-100		260+285	66
RXQ 40 AMY14	RXQ 20 AY14	RXQ 20 AY14	–	382,000	35.4	3-100		285+285	68
RXQ 42 AMY14	RXQ 12 AY14	RXQ 12 AY14	RXQ 18 AY14	399,000	32.7	4-100	“(1,657×930×765)+(1,657×930×765)	185+185+260	65
RXQ 44 AMY14	RXQ 12 AY14	RXQ 12 AY14	RXQ 20 AY14	420,000	35.1	3-100	“(1,657×930×765)+(1,657×930×765)	185+185+285	67
RXQ 46 AMY14	RXQ 14 AY14	RXQ 14 AY14	RXQ 18 AY14	444,000	36.7		(1,657×1,240×765) + (1,657×1,240×765) + (1,657×1,240×765)	215+215+260	65
RXQ 48 AMY14	RXQ 14 AY14	RXQ 16 AY14	RXQ 18 AY14	461,000	38.9			215+260+260
RXQ 50 AMY14	RXQ 14 AY14	RXQ 18 AY14	RXQ 18 AY14	478,000	41.3			215+260+260
RXQ 52 AMY14	RXQ 16 AY14	RXQ 18 AY14	RXQ 18 AY14	495,000	43.5			260+260+260
RXQ 54 AMY14	RXQ 18 AY14	RXQ 18 AY14	RXQ 18 AY14	512,000	45.9			260+260+260	66
RXQ 56 AMY14	RXQ 18 AY14	RXQ 18 AY14	RXQ 20 AY14	532,000	48.3			260+260+285	68
RXQ 58 AMY14	RXQ 18 AY14	RXQ 20 AY14	RXQ 20 AY14	553,000	50.7	2-100		260+285+285	69
RXQ 60 AMY14	RXQ 20 AY14	RXQ 20 AY14	RXQ 20 AY14	573,000	53.1	2-100		285+285+285	70

3. Spesifikasi VRV IV-S

Model Name	Capacity (Btu/h)	Power Consumption (kW)	Capacity Control (%)	Dimention (HxWxD) (mm)	Machine Weight (kg)	Sound Level dB(A)
RXMQ 4 AVE4	38.200	2,88	24-100	990×940×320	71	52
RXMQ 5 AVE4	47.800	3,93	16-100	990×940×320	80	53
RXMQ 6 AVE4	54.600	4,14	16-100	1,345×900×320	102	55
RXMQ 8 AY14	76.400	5,94	20-100	1,430×940×320	131	57
RXMQ 9 AY14	81.900	6,88	20-100	1,430×940×320	131	58

4. Spesifikasi VRV-Q

Model Name	Combination			Capacity (Btu/h)	Power Consumption (kW)	Capacity Control (%)	Dimention (HxWxD) (mm)	Machine Weight (kg)	Sound Level dB(A)
Standard Type
RQQ 6 TY14	RQQ 6 TY14	–	–	54,600	3.63	20-100	1,657X930X765	185	55
RQQ 8 TY14	RQQ 8 TY14	–	–	76,400	5.18	20-100		185	56
RQQ 10 TY14	RQQ 10 TY14	–	–	95,500	6.88	16-100		195	57
RQQ 12 TY14	RQQ 12 TY14	–	–	114,000	8.82	15-100		195	59
RQQ 14 TY14	RQQ 14 TY14	–	–	136,000	10.7	11-100	1,657X1,240X765	285	60
RQQ 16 TY14	RQQ 16 TY14	–	–	154,000	13.0	10-100	1,657X1,240X765	285	61
RQQ 18 TNY14	RQQ 8 TY14	RQQ 10 TY14	–	172,000	12.1	8-100	“(1,657X930X765)+(1,657X930X765)”	185+195	60
RQQ 20 TNY14	RQQ 8 TY14	RQQ 12 TY14	–	191,000	14.0			185+195	61
RQQ 22 TNY14	RQQ 10 TY14	RQQ 12 TY14	–	210,000	15.7			195+195	61
RQQ 24 TNY14	RQQ 12 TY14	RQQ 12 TY14	–	229,000	17.6			195+195	62
RQQ 26 TNY14	RQQ 12 TY14	RQQ 14 TY14	–	251,000	19.5	6-100	“(1,657X930X765)+(1,657X1,240X765)”	195+285	63
RQQ 28 TNY14	RQQ 12 TY14	RQQ 16 TY14	–	268,000	21.8	6-100	“(1,657X930X765)+(1,657X1,240X765)”	195+285	63
RQQ 30 TNY14	RQQ 14 TY14	RQQ 16 TY14	–	290,000	23.7	5-100	“(1,657X1,240X765)+(1,657X1,240X765)”	285+285	64
RQQ 32 TNY14	RQQ 14 TY14	RQQ 18 TY14	–	307,000	26.1		“(1,657X1,240X765)+(1,657X1,240X765)”	285+285	64
RQQ 34 TNY14	RQQ 10 TY14	RQQ 12 TY14	RQQ 12 TY14	324,000	24.5		“(1,657X930X765)+(1,657X930X765)+(1,657X930X765)”	195+195+195	63
RQQ 36 TNY14	RQQ 12 TY14	RQQ 12 TY14	RQQ 12 TY14	345,000	26.5		“(1,657X930X765)+(1,657X930X765)+(1,657X930X765)”	195+195+195	64
RQQ 38 TNY14	RQQ 8 TY14	RQQ 12 TY14	RQQ 18 TY14	362,000	29.4	4-100	“(1,657X930X765)+(1,657X1,240X765)+(1,657X930X765)”	185+195+285	64
RQQ 40 TNY14	RQQ 12 TY14	RQQ 12 TY14	RQQ 16 TY14	382,000	30.6		“(1,657X930X765)+(1,657X1,240X765)+(1,657X930X765)”	195+195+285	65
RQQ 42 TNY14	RQQ 12 TY14	RQQ 14 TY14	RQQ 16 TY14	406,000	32.5		“(1,657X930X765)+(1,657X1,240X765)+(1,657X1,240X765)”	195+285+285
RQQ 44 TNY14	RQQ 12 TY14	RQQ 16 TY14	RQQ 16 TY14	423,000	34.8		“(1,657X930X765)+(1,657X1,240X765)+(1,657X1,240X765)”	195+285+285
RQQ 46 TNY14	RQQ 14 TY14	RQQ 14 TY14	RQQ 18 TY14	444,000	36.8	3-100	“(1,657X1,240X765)+(1,657X1,240X765)+(1,657X1,240X765)”	285+285+285	66
RQQ 48 TNY14	RQQ 14 TY14	RQQ 16 TY14	RQQ 18 TY14	461,000	39.1	3-100	“(1,657X1,240X765)+(1,657X1,240X765)+(1,657X1,240X765)”	285+285+285	66
Space Savings Type
RQQ 18 TY14	RQQ 18 TY14	–	–	171,000	15.4	10-100	1,657X1,240X765	285	62
RQQ 20 TY14	RQQ 20 TY14	–	–	191,000	18.0	8-100	1,657X1,240X765	320	65
RQQ 30 TSY14	RQQ 12 TY14	RQQ 18 TY14	–	285,000	24.2	6-100	“(1,657X930X765)+(1,657X1,240X765)”	195+285	64
RQQ 32 TSY14	RQQ 12 TY14	RQQ 20 TY14	–	305,000	26.8	5-100	“(1,657X930X765)+(1,657X1,240X765)”	195+320	66
RQQ 34 TSY14	RQQ 16 TY14	RQQ 18 TY14	–	324,000	28.4		“(1,657X1,240X765)+(1,657X1,240X765)”	285+285	65
RQQ 36 TSY14	RQQ 18 TY14	RQQ 18 TY14	–	341,000	30.8			285+285	65
RQQ 38 TSY14	RQQ 18 TY14	RQQ 20 TY14	–	362,000	33.4	4-100		285+320	67
RQQ 40 TSY14	RQQ 20 TY14	RQQ 20 TY14	–	382,000	36.0			320+320	68
RQQ 42 TSY14	RQQ 12 TY14	RQQ 12 TY14	RQQ 18 TY14	399,000	33.0		“(1,657X930X765)+(1,657X930X765)+(1,657X1,240X765)”	195+195+285	65
RQQ 44 TSY14	RQQ 12 TY14	RQQ 12 TY14	RQQ 20 TY14	420,000	35.6		“(1,657X930X765)+(1,657X930X765)+(1,657X1,240X765)”	195+195+320	67
RQQ 46 TSY14	RQQ 12 TY14	RQQ 16 TY14	RQQ 18 TY14	440,000	37.2		“(1,657X930X765)+(1,657X1,240X765)+(1,657X1,240X765)”	195+285+285	66
RQQ 48 TSY14	RQQ 12 TY14	RQQ 18 TY14	RQQ 18 TY14	457,000	39.6		“(1,657X930X765)+(1,657X1,240X765)+(1,657X1,240X765)”	195+285+285	66

5. Spesifikasi VRV HRHW

Model Name	Combination			Capacity (Btu/h)	Power Consumption (kW)	Capacity Control (%)	Dimention (HxWxD) (mm)	Machine Weight (kg)	Sound Level dB(A)
Basic Module
RWHQ 6 TY14	–	–	–	54,600	3.55	20-100	1,657x930x765	185	55
RWHQ 8 TY14	–	–	–	76,400	5.13	20-100		185	56
RWHQ 10 TY14	–	–	–	95,500	7.22	16-100		200	57
RWHQ 12 TY14	–	–	–	114,000	8.93	15-100		200	59
RWHQ 14 TY14	–	–	–	136,000	10.8	11-100	1,657×1,240×765	285	60
RWHQ 16 TY14	–	–	–	154,000	12.9	10-100			61
RWHQ 18 TY14	–	–	–	171,000	15.3	10-100			62
RWHQ 20 TY14	–	–	–	191,000	17.9	8-100		320	65
High COP Type
RWHQ 12 THY14	RWHQ 6 TY14	RWHQ 6 TY14	–	109,000	7.1	10-100	(1,657x930x765)+(1,657x930x765)	119+119	58
RWHQ 14 THY14	RWHQ 6 TY14	RWHQ 8 TY14	–	131,000	8.68			119+157	59
RWHQ 16 THY14	RWHQ 8 TY14	RWHQ 8 TY14	–	153,000	10.3			157+157	59
RWHQ 18 THY14	RWHQ 6 TY14	RWHQ 6 TY14	RWHQ 6 TY14	164,000	10.7	7-100	“(1,657x930x765)+(1,657x930x765)+(1,657x930x765)”	119+119+119	60
RWHQ 20 THY14	RWHQ 6 TY14	RWHQ 6 TY14	RWHQ 8 TY14	186,000	12.2			119+119+157
RWHQ 22 THY14	RWHQ 6 TY14	RWHQ 8 TY14	RWHQ 8 TY14	207,000	13.8			119+157+157
RWHQ 24 THY14	RWHQ 8 TY14	RWHQ 8 TY14	RWHQ 8 TY14	229,000	15.4			157+157+157	61
RWHQ 26 THY14	RWHQ 8 TY14	RWHQ 8 TY14	RWHQ 10 TY14	248,000	17.5	6-100		185+185+200	61
RWHQ 28 THY14	RWHQ 8 TY14	RWHQ 8 TY14	RWHQ 12 TY14	267,000	19.2	6-100		185+185+200	62
RWHQ 30 THY14	RWHQ 8 TY14	RWHQ 10 TY14	RWHQ 12 TY14	286,000	21.3	5-100		185+200+200	62
RWHQ 32 THY14	RWHQ 8 TY14	RWHQ 12 TY14	RWHQ 12 TY14	305,000	23			185+200+200	63
RWHQ 34 THY14	RWHQ 8 TY14	RWHQ 12 TY14	RWHQ 14 TY14	327,000	24.9		“(1,657x930x765)+(1,657x930x765)+(1,657×1,240×765)”	185+200+285	63
RWHQ 36 THY14	RWHQ 8 TY14	RWHQ 14 TY14	RWHQ 14 TY14	348,000	26.7	4-100	“(1,657x930x765)+(1,657×1,240×765)+(1,657×1,240×765)”	185+285+285	64
RWHQ 38 THY14	RWHQ 12 TY14	RWHQ 12 TY14	RWHQ 14 TY14	365,000	28.7		“(1,657x930x765)+(1,657x930x765)+(1,657×1,240×765)”	200+200+285
RWHQ 40 THY14	RWHQ 12 TY14	RWHQ 14 TY14	RWHQ 14 TY14	389,000	30.5		“(1,657x930x765)+(1,657×1,240×765)+(1,657×1,240×765)”	200+285+285
RWHQ 42 THY14	RWHQ 14 TY14	RWHQ 14 TY14	RWHQ 14 TY14	409,000	32.4		“(1,657×1,240×765)+(1,657×1,240×765)+(1,657×1,240×765)”	285+285+285	65
RWHQ 44 THY14	RWHQ 14 TY14	RWHQ 14 TY14	RWHQ 16 TY14	427,000	34.5	3-100
RWHQ 46 THY14	RWHQ 14 TY14	RWHQ 16 TY14	RWHQ 16 TY14	444,000	36.6
RWHQ 48 THY14	RWHQ 16 TY14	RWHQ 16 TY14	RWHQ 16 TY14	461,000	38.7				66
RWHQ 50 THY14	RWHQ 16 TY14	RWHQ 16 TY14	RWHQ 18 TY14	478,000	41.1				66
Standard Type
RWHQ 18 TNY14	RWHQ 8 TY14	RWHQ 10 TY14	–	172,000	12.4	8-100	(1,657x930x765)+(1,657x930x765)	157+165	60
RWHQ 20 TNY14	RWHQ 8 TY14	RWHQ 12 TY14	–	191,000	14.1	8-100	(1,657x930x765)+(1,657x930x765)	157+178	61
RWHQ 22 TNY14	RWHQ 8 TY14	RWHQ 14 TY14	–	213,000	15.9	7-100	(1,657x930x765)+(1,657×1,240×765)	157+233	61
RWHQ 24 TNY14	RWHQ 10 TY14	RWHQ 14 TY14	–	232,000	18.0	6-100		165+233	62
RWHQ 26 TNY14	RWHQ 12 TY14	RWHQ 14 TY14	–	251,000	19.7	6-100		178+233	63
RWHQ 28 TNY14	RWHQ 14 TY14	RWHQ 14 TY14	–	273,000	21.6	5-100	(1,657×1,240×765)+(1,657×1,240×765)	233+233	63
RWHQ 30 TNY14	RWHQ 14 TY14	RWHQ 16 TY14	–	290,000	23.7				64
RWHQ 32 TNY14	RWHQ 14 TY14	RWHQ 18 TY14	–	307,000	26.1				64
RWHQ 34 TNY14	RWHQ 10 TY14	RWHQ 12 TY14	RWHQ 12 TY14	324,000	25.1		“(1,657x930x765)+(1,657x930x765)+(1,657x930x765)”	200+200+200	63
RWHQ 36 TNY14	RWHQ 12 TY14	RWHQ 12 TY14	RWHQ 12 TY14	345,000	26.8		“(1,657x930x765)+(1,657x930x765)+(1,657x930x765)”	64
RWHQ 38 TNY14	RWHQ 8 TY14	RWHQ 12 TY14	RWHQ 18 TY14	362,000	29.4	4-100	“(1,657x930x765)+(1,657x930x765)+(1,657×1,240×765)”	185+200+285
RWHQ 40 TNY14	RWHQ 12 TY14	RWHQ 12 TY14	RWHQ 16 TY14	382,000	30.8		“(1,657x930x765)+(1,657x930x765)+(1,657×1,240×765)”	200+200+285	65
RWHQ 42 TNY14	RWHQ 12 TY14	RWHQ 14 TY14	RWHQ 16 TY14	406,000	32.6		“(1,657x930x765)+(1,657×1,240×765)+(1,657×1,240×765)”	200+285+285
RWHQ 44 TNY14	RWHQ 12 TY14	RWHQ 16 TY14	RWHQ 16 TY14	423,000	34.7		“(1,657x930x765)+(1,657×1,240×765)+(1,657×1,240×765)”	200+285+285
RWHQ 46 TNY14	RWHQ 14 TY14	RWHQ 14 TY14	RWHQ 18 TY14	444,000	36.9	3-100	“(1,657×1,240×765)+(1,657×1,240×765)+(1,657×1,240×765)”	285+285+285	66
RWHQ 48 TNY14	RWHQ 14 TY14	RWHQ 16 TY14	RWHQ 18 TY14	461,000	39.0			233+233+233
RWHQ 50 TNY14	RWHQ 14 TY14	RWHQ 18 TY14	RWHQ 18 TY14	478,000	41.4
RWHQ 52 TNY14	RWHQ 16 TY14	RWHQ 18 TY14	RWHQ 18 TY14	495,000	43.5
RWHQ 54 TNY14	RWHQ 18 TY14	RWHQ 18 TY14	RWHQ 18 TY14	512,000	45.9				67
RWHQ 56 TNY14	RWHQ 18 TY14	RWHQ 18 TY14	RWHQ 20 TY14	532,000	48.5			233+233+268	68
RWHQ 58 TNY14	RWHQ 18 TY14	RWHQ 20 TY14	RWHQ 20 TY14	553,000	51.1			233+268+268	69
RWHQ 60 TNY14	RWHQ 20 TY14	RWHQ 20 TY14	RWHQ 20 TY14	573,000	53.7			268+268+268	70
Space Savings Type
RWHQ 22 TSY14	RWHQ 10 TY14	RWHQ 12 TY14	–	210,000	16.2	8-100	(1,657x930x765)+(1,657x930x765)	200+200	61
RWHQ 24 TSY14	RWHQ 12 TY14	RWHQ 12 TY14	–	229,000	17.9	62	(1,657x930x765)+(1,657x930x765)	200+200	61
RWHQ 26 TSY14	RWHQ 8 TY14	RWHQ 18 TY14	–	247,000	20.4	7-100	” (1,657x930x765)+(1,657×1,240×765) “	157+233	63
RWHQ 28 TSY14	RWHQ 12 TY14	RWHQ 16 TY14	–	268,000	21.8	6-100		178+233
RWHQ 30 TSY14	RWHQ 12 TY14	RWHQ 18 TY14	–	285,000	24.2	64		178+233
RWHQ 32 TSY14	RWHQ 12 TY14	RWHQ 20 TY14	–	305,000	26.8	5-100		178+268	66
RWHQ 34 TSY14	RWHQ 16 TY14	RWHQ 18 TY14	–	324,000	28.2		” (1,657×1,240×765)+(1,657×1,240×765) “	233+233	65
RWHQ 36 TSY14	RWHQ 18 TY14	RWHQ 18 TY14	–	341,000	30.6			233+233	65
RWHQ 38 TSY14	RWHQ 18 TY14	RWHQ 20 TY14	–	362,000	33.2	4-100		285+320	67
RWHQ 40 TSY14	RWHQ 20 TY14	RWHQ 20 TY14	–	382,000	35.8			320+320	68
RWHQ 42 TSY14	RWHQ 12 TY14	RWHQ 12 TY14	RWHQ 18 TY14	399,000	33.2		“(1,657x930x765)+(1,657x930x765)+(1,657×1,240×765)”	200+200+285	65
RWHQ 44 TSY14	RWHQ 12 TY14	RWHQ 12 TY14	RWHQ 20 TY14	420,000	35.8		“(1,657x930x765)+(1,657x930x765)+(1,657×1,240×765)”	200+200+320	67
RWHQ 46 TSY14	RWHQ 12 TY14	RWHQ 16 TY14	RWHQ 18 TY14	440,000	37.1		“(1,657x930x765)+(1,657×1,240×765)+(1,657×1,240×765)”	200+285+285	66
RWHQ 48 TSY14	RWHQ 12 TY14	RWHQ 18 TY14	RWHQ 18 TY14	457,000	39.5			200+285+285	66
RWHQ 50 TSY14	RWHQ 12 TY14	RWHQ 18 TY14	RWHQ 20 TY14	478,000	42.1	3-100		200+285+320	67

6. Spesifikasi VRV IV W

Model Name	Combination			Capacity (Btu/h)	Power Consumption (kW)	Capacity Control (%)	Dimention (HxWxD) (mm)	Machine Weight (kg)	Sound Level dB(A)
RWEYQ 6 TY14	–	–	–	54.600	2,58	23-100	1,000 × 780 × 550	146	49
RWEYQ 8 TY14	–	–	–	76.400	3,86	23-100		146	50
RWEYQ 10 TY14	–	–	–	96.500	5,43	19-100		147	51
RWEYQ 12 TY14	–	–	–	114.000	7,33	19-100		147	53
RWEYQ 14 TY14	RWEYQ 6 TY14	RWEYQ 8 TY14	–	131.000	6,44	23-100	(1,000 × 780 × 550) × 2	146 × 2
RWEYQ 16 TY14	RWEYQ 8 TY14	RWEYQ 8 TY14	–	153.000	7,72	23-100		146 × 2
RWEYQ 18 TY14	RWEYQ 8 TY14	RWEYQ 10 TY14	–	172.000	9,29	20-100		146 + 147	54
RWEYQ 20 TY14	RWEYQ 10 TY14	RWEYQ 10 TY14	–	191.000	10,9	19-100		147 × 2	54
RWEYQ 22 TY14	RWEYQ 10 TY14	RWEYQ 12 TY14	–	210.000	12,8				55
RWEYQ 24 TY14	RWEYQ 12 TY14	RWEYQ 12 TY14	–	229.000	14,7				56
RWEYQ 26 TY14	RWEYQ 8 TY14	RWEYQ 8 TY14	RWEYQ 10 TY14	248.000	13,2	21-100	(1,000 × 780 × 550) × 3	146 × 2 + 147	55
RWEYQ 28 TY14	RWEYQ 8 TY14	RWEYQ 10 TY14	RWEYQ 10 TY14	268.000	14,7	20-100		146 + 147 × 2	56
RWEYQ 30 TY14	RWEYQ 10 TY14	RWEYQ 10 TY14	RWEYQ 10 TY14	287.000	16,3	19-100		147 × 3	56
RWEYQ 32 TY14	RWEYQ 10 TY14	RWEYQ 10 TY14	RWEYQ 12 TY14	305.000	18,2				57
RWEYQ 34 TY14	RWEYQ 10 TY14	RWEYQ 12 TY14	RWEYQ 12 TY14	324.000	20,1				57
RWEYQ 36 TY14	RWEYQ 12 TY14	RWEYQ 12 TY14	RWEYQ 12 TY14	345.000	22,0				58

7. Spesifikasi INDOOR LINEUP

Salah satu nya adalah type Ceiling Mounted Cassette ( Round Flow With Sensing )

Model Name	Power Supply	Cooling Capacity	Power Consumption	Dimensions (HxWxD)	Machine Weight	Sound Level(H/HM/M/ML/L)
Model Name	Power Supply	Btu/h	kW	mm	kg	dB(A)
FXFSQ25AV4	1-phase, 220-240 V/220-230 V, 50/60 Hz	9.600	0,028	256×840×840	19	30/29.5/28.5/28/27
FXFSQ32AV4		12.300	0,028			30/29.5/28.5/28/27
FXFSQ40AV4		15.400	0,035			35/29.5/29/28/27
FXFSQ50AV4		19.100	0,038		24	38/35/34.5/29.5/27
FXFSQ63AV4		24.200	0,061		22	38/36/35.5/31.5/28
FXFSQ80AV4		30.700	0,092		22	39/37/36/35.5/31
FXFSQ100AV4		38.200	0,144	298×840×840	25	44/41/38/35/33
FXFSQ125AV4		47.800	0,170		25	45/42.5/39.5/37/35
FXFSQ140AV4		54.600	0,194		26	46/43.5/40.5/38/35

Our Blog
